Description

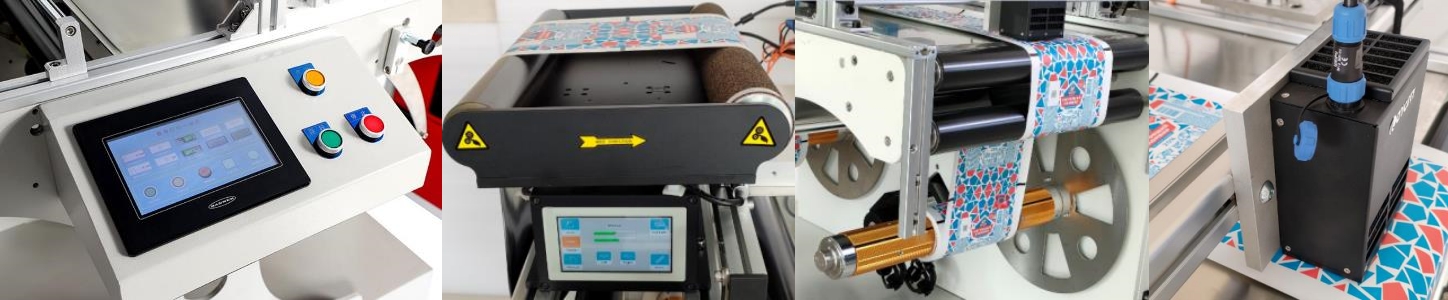

Smart 7-inch color touch screen and high-performance PLC control. Can set working parameters, monitor working status, and provide alarm reminders according to different film and paper labels. The control system sets constant unwinding and unwinding tension; All functions such as constant speed lifting, parking anti loosening, etc. truly achieve intelligent control.

Multi-functional Can install coding equipment such as TTO heat transfer printing machine, industrial inkjet printer, and UV inkjet printing system. Meeting various process requirements in various industries. Continuous or intermittent feeding, modular structure, and various configurations according to different applications.

Technicial Data

Standard Configuration: single device                                              UV Printing Support Frame: profile frame

Running Speed: 1-110 m/min                                                           Material Thickness: 0.012-0.15mm

Inner Diameter of Material Paper Core: 3 inches ( 76mm)                Material Width: 30-500mm

Collection Method:automatic rewinding                                           Input Voltage:220VAC

Equipment Weight:about 300KG                                                       Maximum Material Diameter: 500mm
